How about MCX connector datasheet ?
How about MCX connector datasheet ? Horsin talk about it . you can have a general understanding for MCX connector datasheet now. Whether you're in charge of purchasing or engineering, it's good to know MCX connector datasheet performance metrics. I believe that you only have a sufficient understanding of this product, and you can be more efficient in procurement or R&D process, have more comprehensive to select high-quality MCX connector.
1). Materials: the MCX outer body is usually made of brass, and center pin is usually phosphorous copper

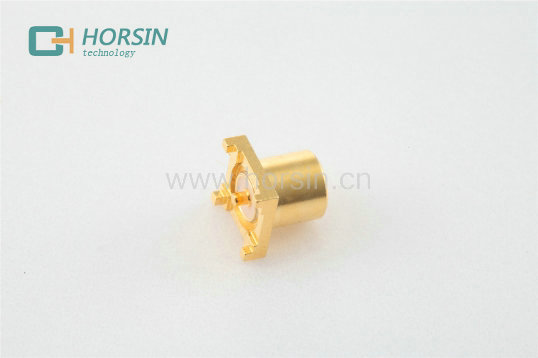

2). Structure: MCX connector is smaller than the SMB connector in size. It adopts push-in connection mode and has bite structure. Faster connection performance, can be designed and installed on PCB board, can also be designed contact for RF cable, it is more choose for all kinds of application.
3). Electroplating: gold plating is a general requirement, but the thickness of electroplating is different according to the customer's requirements
4). Assembly: assemble center pin and outer conductor and insulator according to the international size with certain assembly fixture.
5). Performance: return loss , frequency , VSWR is normally performance request
6). Application: commonly used in antenna, GPS system, base station application, cable components, instrumentation, telecommunication system, network etc.
Horsin technology co,.ltd is a professional manufacture on RF coaxial connector . To learn more about MCX connector datasheet, application ,design , technology, and material selection , please check product list for review or contact with our sales department .
