Introduction of MMCX connector:

MMCX RF connector with a snap lock structure and having a smaller size than MCX connector. The design of this structure allows to quickly connect and disconnect MMCX RF connector in a limited space. The MMCX RF connector has 50ohm impedance and is typically used at frequencies below 6 GHz. The MMCX bite structure allows it to rotate 360 degrees. MMCX RF connectors are used in many different applications, such as GPS positioning, GSM cellular telephone networks, WiFi wireless networks or WLAN devices.

MMCX RF coaxial Connector are our regular products. If you can't find the right connector or cable assembly what you need, we can customize the design per your requirements. Therefore, we offer OEM and ODM services for various RF connector. We will provide you with integrated RF solutions.

Horsin provides a full range of RF coaxial connectors, from SMP, MMCX, MCX , SMA, SSMA, SMB, SSMB, SMC, SSMC,4.3-10, Din 7/16, N etc . in the same time ,we are supply alternative IPEX. which supply to do standard products ODM and custom-made products OEM Service.

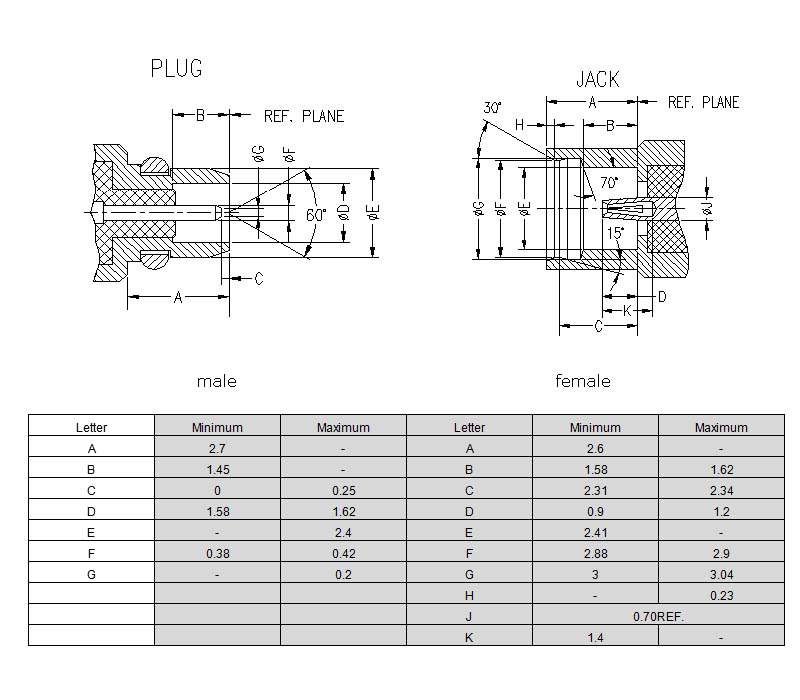

Interface size
 Interface size
